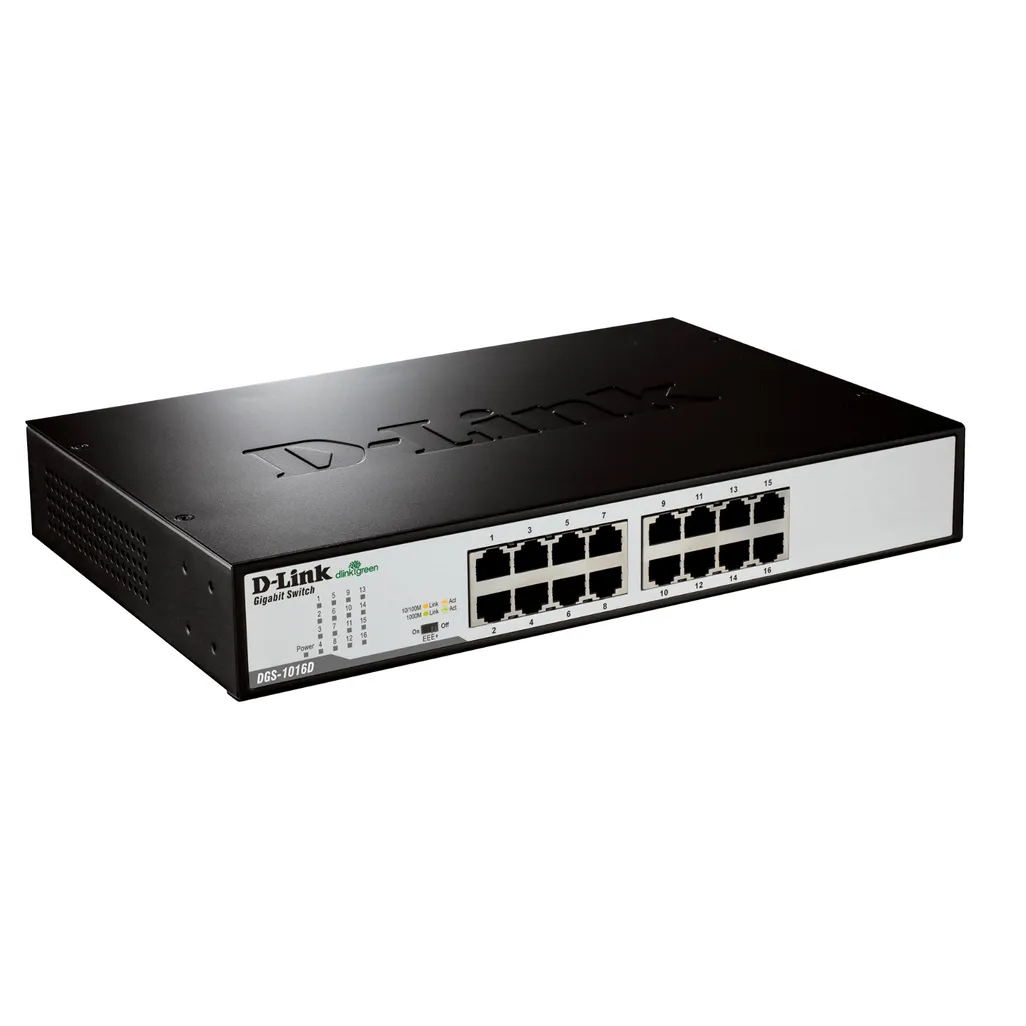

D-Link DGS-1016D/E | 16-Port Unmanaged | Full duplex | Rack mounting
R2,299.99
1. General Description
- Model: D-Link DGS-1016D/E
- Type: Unmanaged Gigabit Ethernet Switch
- Form Factor: Rack-mountable
2. Physical Features
- Dimensions: 280 x 180 x 44 mm (11.02 x 7.09 x 1.73 inches)
- Weight: 1.8 kg (3.97 lbs)
- LED Indicators: Power, Link/Activity (per port)
3. Hardware Specifications
- Ports:
- Total Ports: 16
- 10/100/1000 Mbps Gigabit Ports: 16
- Duplex Mode: Full Duplex (supports half duplex as well)
- Auto MDI/MDI-X: Automatic crossover for all ports
4. Performance Specifications
- Switching Capacity: 32 Gbps
- Forwarding Rate: 23.81 Mpps (Million packets per second)
- MAC Address Table: 8,000 entries
- Packet Buffer Memory: 512 KB
- Jumbo Frame Support: Up to 9,720 bytes
5. Network Features
- IEEE Standards:
- IEEE 802.3 10BASE-T Ethernet
- IEEE 802.3u 100BASE-TX Fast Ethernet
- IEEE 802.3ab 1000BASE-T Gigabit Ethernet
- IEEE 802.3x Flow Control
- IEEE 802.1p QoS
6. Power and Environmental Specifications
- Power Supply:
- Internal
- AC Input: 100-240V, 50/60Hz
- Power Consumption:
- Maximum: 14.16W
- Heat Dissipation:
- 48.33 BTU/hr
- Operating Temperature: 0 to 40°C (32 to 104°F)
- Storage Temperature: -10 to 70°C (14 to 158°F)
- Operating Humidity: 10% to 90% non-condensing
- Storage Humidity: 5% to 90% non-condensing
7. Certifications
- Certifications:
- CE
- FCC
- VCCI
- C-Tick
- cUL
- CB
8. Energy Efficiency
- D-Link Green Technology:
- Reduces power consumption during periods of low link utilization
- Adjusts power usage based on the length of connected cables
- Complies with IEEE 802.3az Energy Efficient Ethernet (EEE)
9. Warranty and Support
- Warranty: Limited Lifetime Warranty
- Support: 24/7 Technical Support
10. Package Contents
- Contents:
- DGS-1016D/E Switch
- Power Cord
- Rack Mount Kit
- Rubber Feet
- Quick Installation Guide
11. Additional Features
- Auto-Negotiation: Automatically adjusts the speed (10/100/1000 Mbps) and duplex mode (full/half) for optimal performance
- Fanless Design: Ensures silent operation, ideal for quiet environments
- Rack Mount Kit: Included for easy installation in standard server racks
- Plug-and-Play: No configuration required, ensuring simple setup and integration into your network
The D-Link DGS-1016D/E is a robust and efficient solution for those seeking to enhance their network infrastructure with reliable, high-speed connectivity. Its combination of performance, energy efficiency, and ease of use makes it a top choice for both small business and home office environments.
Description
D-Link DGS-1016D/E: The Ultimate Unmanaged Switch Solution
Model Overview
- Model: D-Link DGS-1016D/E
- Type: Unmanaged Switch
- Duplex Mode: Full Duplex
- Mounting: Rack Mountable
Performance and Efficiency
Experience superior network performance with the D-Link DGS-1016D/E Unmanaged Switch. This 16-port gigabit switch is designed to enhance your network’s speed and efficiency. Each port supports auto-negotiation for optimal speed and duplex mode, ensuring seamless data transfer. Whether you’re streaming high-definition content, transferring large files, or simply browsing the internet, this switch provides the bandwidth and stability needed for smooth, uninterrupted connectivity.
Versatile Connectivity
Equipped with 16 Gigabit Ethernet ports, the DGS-1016D/E offers versatile connectivity options for your devices. From computers and servers to network storage devices, this switch can handle it all. Its full-duplex mode doubles the effective bandwidth, allowing for data transmission and reception simultaneously, further enhancing network efficiency.
Easy Integration and Setup
Designed for hassle-free integration into your existing network, the DGS-1016D/E features plug-and-play installation. No complex configurations or software installations are required. Simply connect your devices, and the switch takes care of the rest. This makes it an ideal choice for both small businesses and home offices looking for a straightforward network upgrade.
Durable and Reliable Design
Built to last, the DGS-1016D/E boasts a robust metal housing that ensures durability and longevity. Its fanless design means silent operation, making it perfect for noise-sensitive environments. The rack-mountable form factor allows for easy installation in standard server racks, saving valuable space and keeping your network setup organized.
Energy-Efficient Technology
The DGS-1016D/E incorporates D-Link’s Green Technology, reducing power consumption without sacrificing performance. It automatically adjusts power usage based on the length of the connected cables and the status of the link, promoting energy savings and reducing your carbon footprint.
